FZG-20 Vacuum Drying Machine Industrial Vacuum Oven Dryer

Name: FZG20 Vacuum Drying Machine Industrial Vacuum Oven Dryer
Brand: Shinma
Price: 15 USD

Quality FZG-20 Vacuum Drying Machine Industrial Vacuum Oven Dryer for sale

Place of Origin : Jiangsu, China

Brand Name : Shinma

Certification : ISO9001,ISO14001

Packaging Details : As per customer's requirement

Supply Ability : 20 Set/Sets per Year

Price : $15,000.00/sets 1-2 sets

Type : Vacuum Drying Equipment

Application : Medicine Processing, Chemicals Processing, Food Processing

Condition : New

Voltage : 220V-450V

Power : 5.5kw

Dimension(L*W*H) : according to the model

Key Selling Points : Energy saving

Warranty : 1 Year

Weight (KG) : 3200

Applicable Industries : Manufacturing Plant, Food & Beverage Factory, Farms, Food & Beverage Shops

Showroom Location : None

Marketing Type : Other

Core Components : Bearing, Pump, Gear, Motor, Gearbox, PLC, Engine, Pressure vessel

Evaporation Capacity(kg/h) : 144

Heating Method : Steam Heating

Material : SUS304, SUS304L, SUS316, SUS316L, Other

numbers of tray : 20-48

After-sales Service Provided : Online support, Video technical support, Free spare parts, Field installation, commissioning and training

After Warranty Service : Video technical support, Online support, Spare parts

Local Service Location : None

Port : Shanghai

Contact Now

FZG 20 vacuum tray oven dryer industrial drying equipment

Vacuum tray dryer Principle:

The dryer adopt vacuum pump to suck out most of the air and evaporated moisture out. Filing hot water, steam or thermal oil inside the dryer, raw material is putted into drying tray and dried under vacuum environment.

Vacuum tray dryer Feature:

1.Under the vacuum condition, the boiling point of raw material will decrease and could heated more uniform.
2.Hot water, steam and thermal oil are available heating resource.
3.The heat loss is less.
4.Operated in closed vacuum condition, there has no cross-contamination, which meet GMP standard.
5.Static drying, raw material could keep its integrity during drying.

We have 2 kinds of vacuum tray dryer type:square and round,please check the below photo.if you have special request,kindly let me know.

PRODUCT SPECIFICATIONS

No	Item	Data(choose as model FZG-20)
1	Inner size of drying chamber	150018001220
2	Outer size of drying chamber	192425001513
3	Layers of backing support	12
4	No.of tray	48
5	Operating temperature of backing support	35-150
6	Vacuum degree inside the chamber when operation in box(Mpa)	-0.1
7	Model and power of vacuum pump when condenser is used(kw)	2x-90A 7.5kw
8	Model and power of vacuum pump when condenser is not used(kw)	SZ-2 5.5kw
9	Weight of drying chamber(kg)	3200

FZG-20 Vacuum Drying Machine Industrial Vacuum Oven Dryer

Other model technical parameters

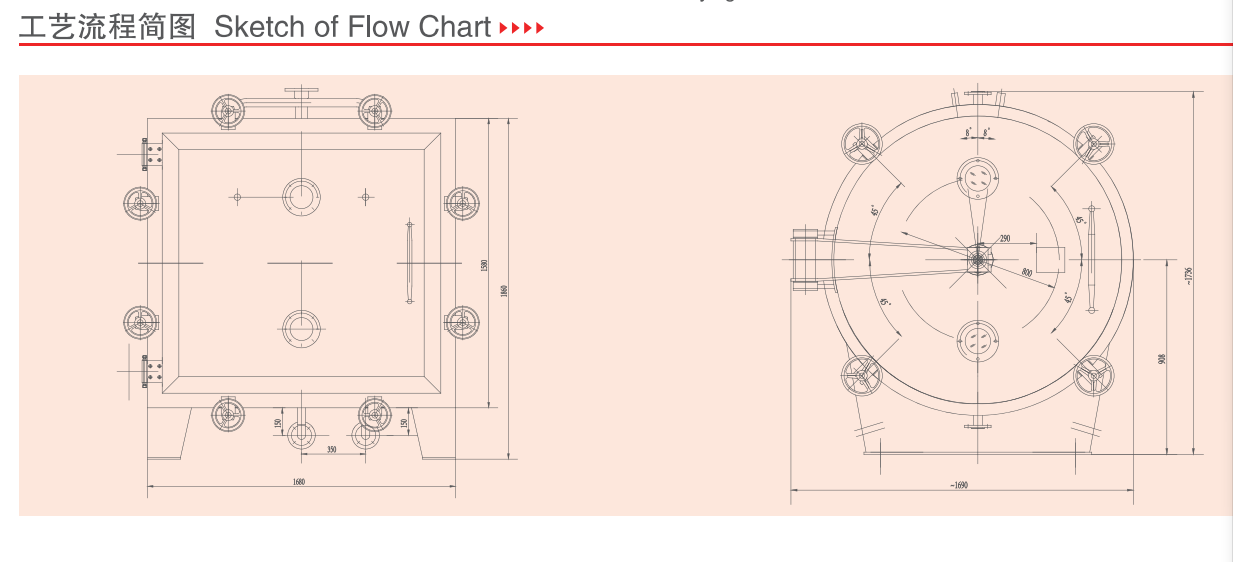

Sketch of Flow Chart
